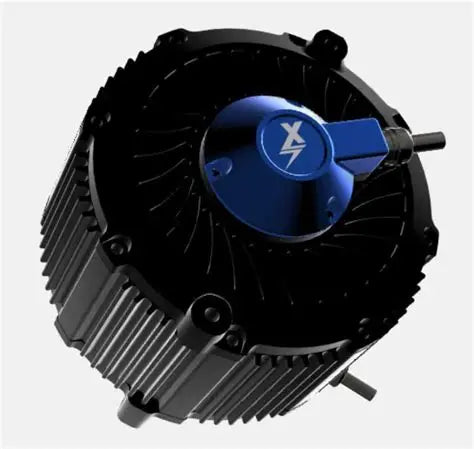

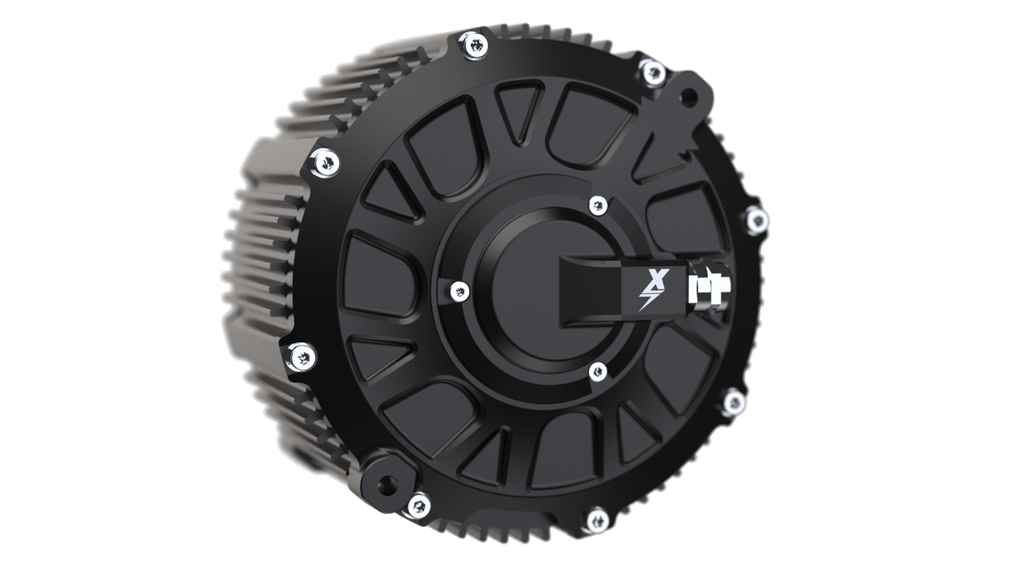

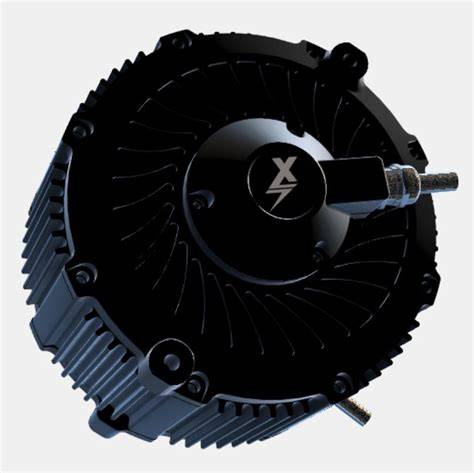

EBMX XLB-60

The EBMX XLB-60 is a high-performance electric motor designed for Surron Light Bee, E-Ride Pro, and similar electric dirt bikes, featuring encoder-based position sensing for superior control. It is available in two main variants: the CORE (87KV) and the RACE (105KV), both typically operating within a 48V–104V range.

Key Specifications (RACE Variant - General Performance)

• Peak Power: Up to 42kW (at 1200 phase amps / 92V)

• Peak Torque: 97 Nm

• Motor KV: 105KV

• Max Rotor RPM: 14,000 RPM

• Stator Size: 65mm

• Weight: Approximately 12.2 kg

• Waterproofing: IP67 rating

• Temperature Limit: 180°C windings

Key Specifications (CORE Variant - Torque Optimized)

• Peak Power: 41kW (at 90V / 1100 phase amps)

• Peak Torque: 97 Nm

• Motor KV: 87KV

• Max Rotor RPM: 12,000 RPM

• Stator Size: 64mm

General Features

• Rotor Type: IPM (Internal Permanent Magnet)

• Configuration: 10 Poles & 12 Slots

• Winding Type: Dual Y Parallel

• Compatibility: Designed for EBMX X-9000 controller (plug-and-play), requires upgraded battery (20S/22S).

• Included: Custom bash plate.

Real-World Performance (72V/22S Setup)

• RACE Motor: 36–38kW

• CORE Motor: 32–35kW

• Top Speeds: 65+ MPH achievable with appropriate gearing (e.g., 64T sprocket).
